SKU ATP113-TL-H Category

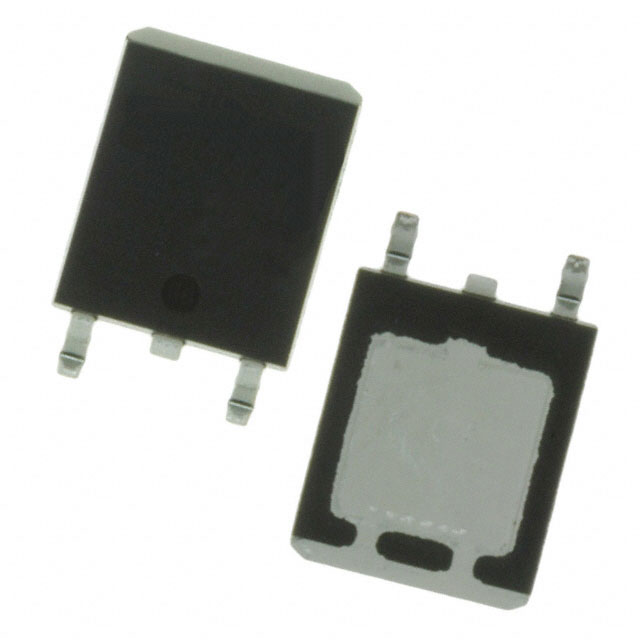

ATP113-TL-H

Manufacturer: Onsemi
Description : MOSFET P-CH 60V 35A ATPAK
Category:
Discrete Semiconductor Products
Transistors
FETs, MOSFETs
Single FETs, MOSFETs
Data sheet: Get PDF File
Date code: 21+

Available Quantity: 2100

Send RFQ Now and we’ll contact you ASAP





Product Specification Parameters
TYPE
DESCRIPTION
Category
Discrete Semiconductor Products
Transistors
FETs, MOSFETs
Single FETs, MOSFETs
Mfr
onsemi
Series
–
Package
Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
Product Status
Active
FET Type
P-Channel
Technology
MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)
60 V
Current – Continuous Drain (Id) @ 25°C
35A (Ta)
Drive Voltage (Max Rds On, Min Rds On)
4V, 10V
Rds On (Max) @ Id, Vgs
29.5mOhm @ 18A, 10V
Vgs(th) (Max) @ Id
–
Gate Charge (Qg) (Max) @ Vgs
55 nC @ 10 V
Vgs (Max)
±20V
Input Capacitance (Ciss) (Max) @ Vds
2400 pF @ 20 V
FET Feature
–
Power Dissipation (Max)
50W (Tc)
Operating Temperature
150°C (TJ)
Mounting Type
Surface Mount
Supplier Device Package
ATPAK
Package / Case
ATPAK (2 Leads+Tab)
Base Product Number
ATP113
